Within Routes the user can define fixed routes, either in Auto Mode or Static Mode.



Auto Route Mode finds its route automatically by defining the endpoints. During run time the route will be dynamically re-routed.

By double clicking on the connection path line and then on the Find Path button a possible connection between the endpoints From and To can be verified.



For detailed explanation on how to use the filter, sort and edit and manipulate each column and cell refer to section EasyEdit









Static Route Mode allows a route to be static all the time and must be defined manually. When applied it uses exactly this route.

If other previous routes are blocking the way the route will not be possible. An error will be returned.





By double clicking on the connection path line all possible routes between these endpoints are listed.

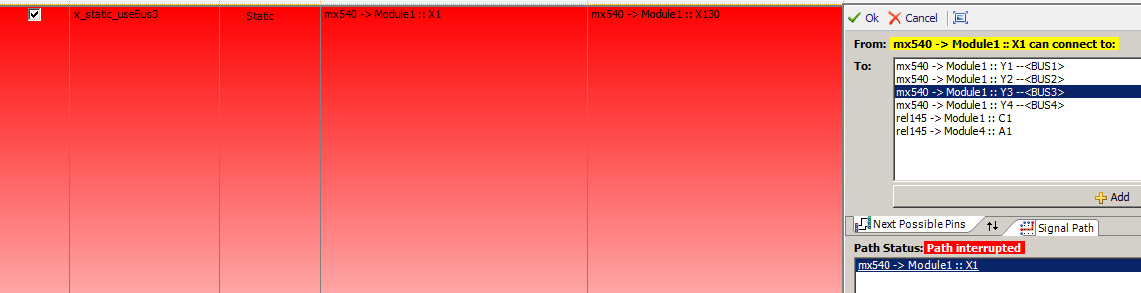

Select one dedicated route and solve the interrupted path status.



Resolved path after selecting BUS3:
