Wiring

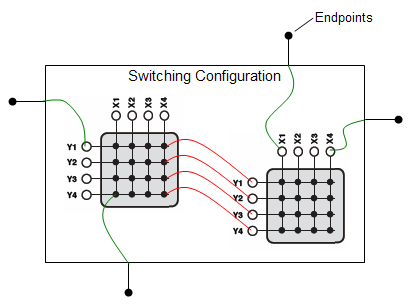

The Wiring defines the interconnection between each module in the switching configuration (see red lines in the schematics below).

Wiring to Endpoints (green lines) is not specifically needed as it has already been directly defined by the Endpoints: Module_Pin=Endpoint_n.

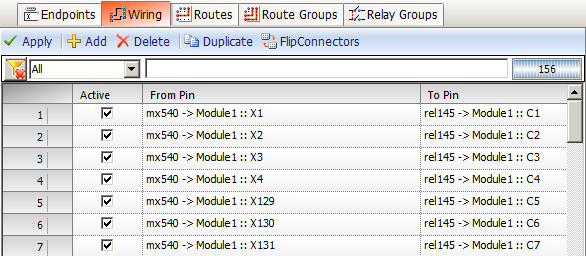

The complete switching system must be described by creating a wiring list From Pin - To Pin.

For detailed explanation on how to use the filter, sort and edit and manipulate each column and cell refer to section EasyEdit

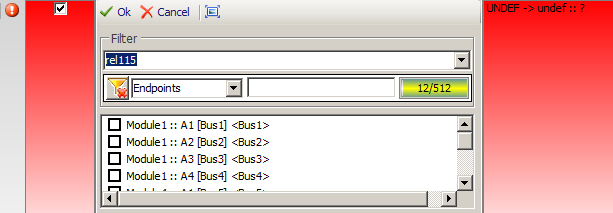

Press the +Add button. Double click the From Pin input field. Selection boxes of all available modules and their pins will appear.

Select a pin on the left side and wire it to the right side in the same way. Unless the wiring is not valid the background will stay red until its resolved.
