LabViewRT



NOTE:  To use this card in LabView RT is is essential that the VISA driver

           option is selected during the installation of the 41-620/51-620 driver.



To use the card in LabViewRT the user must transfer some files to the remote RT system.

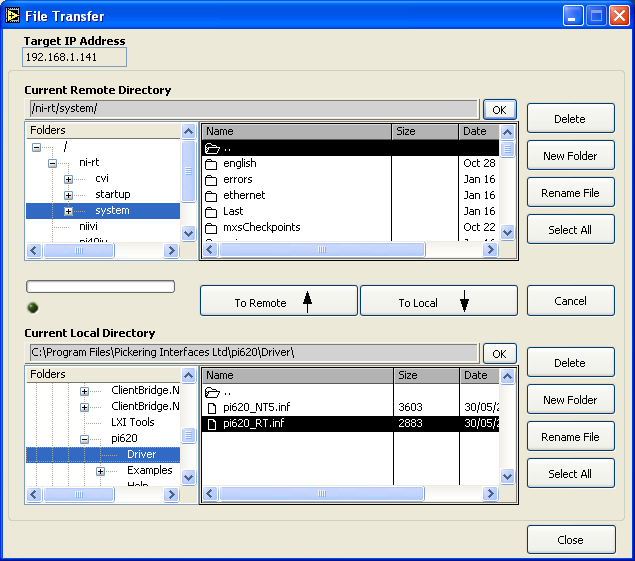

This may be performed using the File Transfer facility in National Instruments Measurement and Automation Explorer (MAX).





The pi620_RT.inf and pi620_32.dll files should be transferred to the remote ni-rt/system folder and then the RT system must be re-booted in order to recognise the card.
