Multi-Point Routes

The Multi-Point Routes tab provides the ability to predefine routes with multiple targets - one starting endpoint and multiple target endpoints.

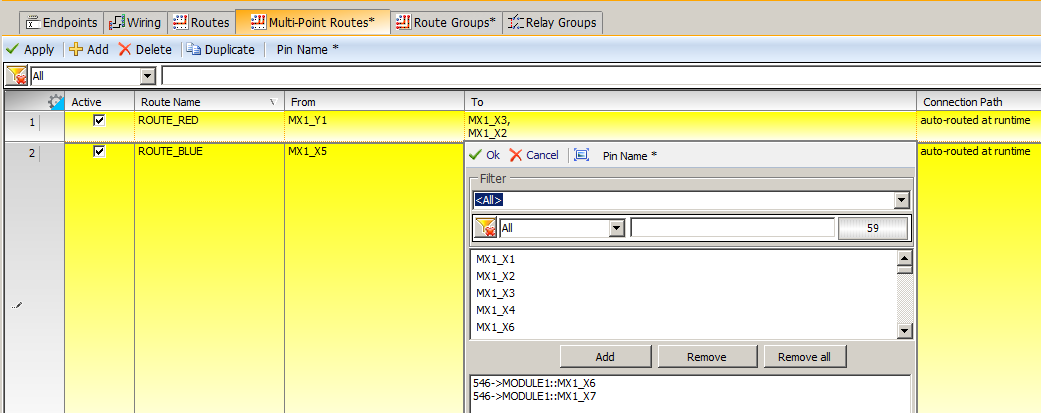

An example is shown in the diagram below ROUTE_RED = Y1 connected to X2 and X3,

ROUTE_BLUE = X5, X6, X7

Create your starting endpoint and add one ore more target endpoints on request. Additional endpoints can be added any time later.

Multi-Point Routes are always auto-routed. A static route definition for Multi-Point Routes is not possible.
