SPM Soft Front Panel

The SPM Soft Front Panel (SFP) is a simple tool to use the API functions interactively without any user programming.

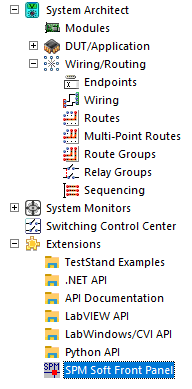

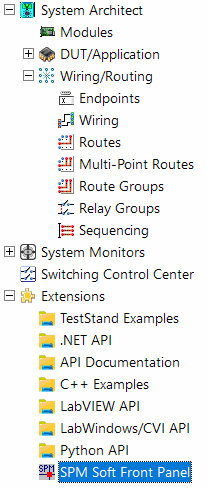

Call the SFP by clicking the link under the IDE Extensions.

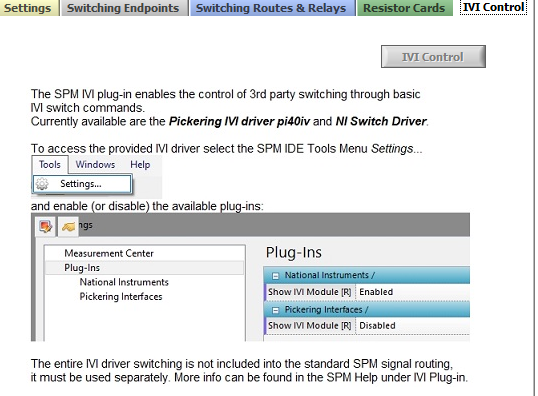

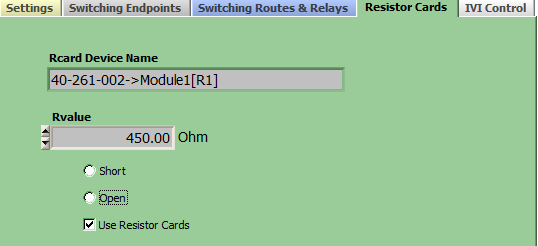

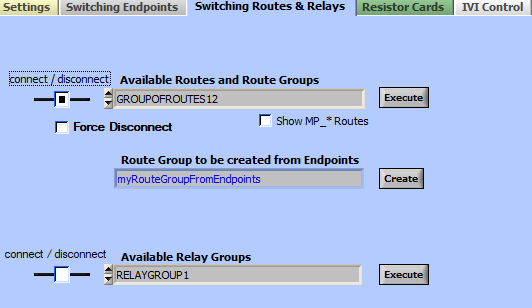

There are five selectable folders for a simple access of available SPM API functions: Settings, Switching Endpoints, Switching Routes & Relays, Resistor Cards, and if enabled the IVI Control section.

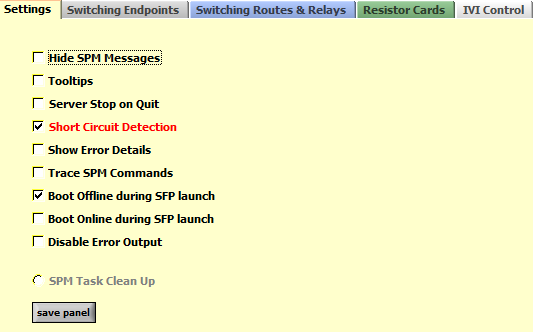

A detailed description of each control and indicator can be displayed by checking the Tooltips checkbox in folder Settings and mouse hover the controls and indicators.

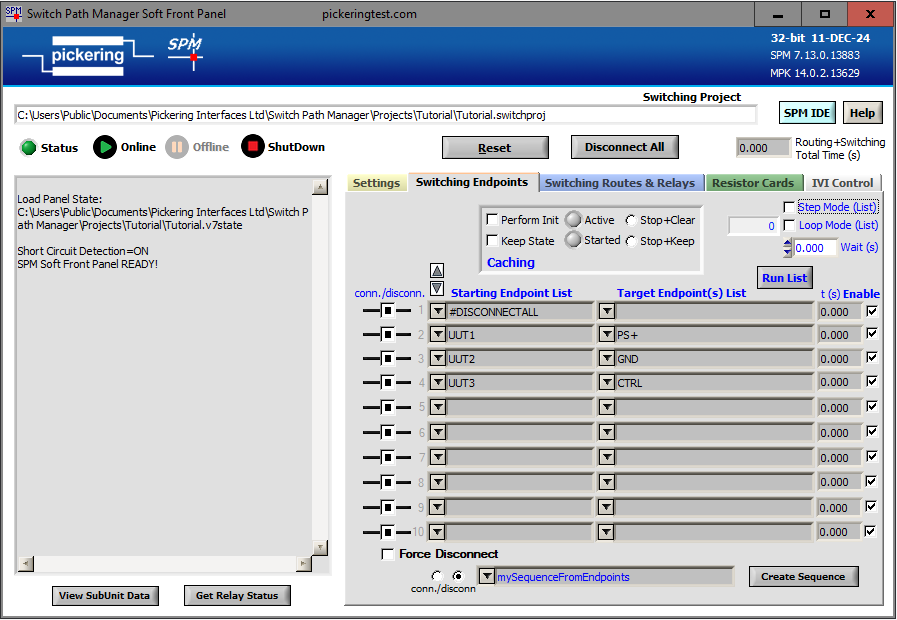

The Starting Endpoint and Target Endpoint(s), Available Sequences, Routes, Route Groups, Relay Groups, are read back from the project during the SFP launch and are ready for use.

Just select any required items in the drop down menus and perform the switching. Starting Endpoint and Target Endpoint(s) can also be edited manually.
