Relay Groups

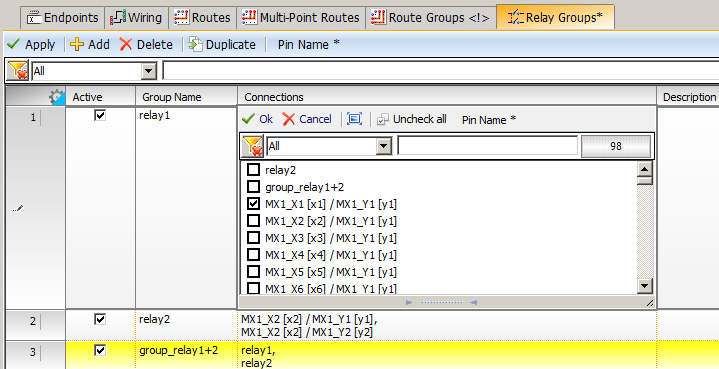

Relay Groups are used to control single relays or a group of relays.

Each item of the connection list describes the individual relay contact.

For example: Relay Group MX1_X1[x1] / MX1_Y1[y1] is the relay channel of matrix crosspoint x1/y1.

If checked, then the relay channel gets added to the relay group.

Please be aware relay groups can overwrite existing routes without any warning!

Overwriting is on purpose to be able to simulate routing faults.

Single relay groups can be grouped to a group of groups, like group_relay1+2 is the group of relay1 and relay2.
